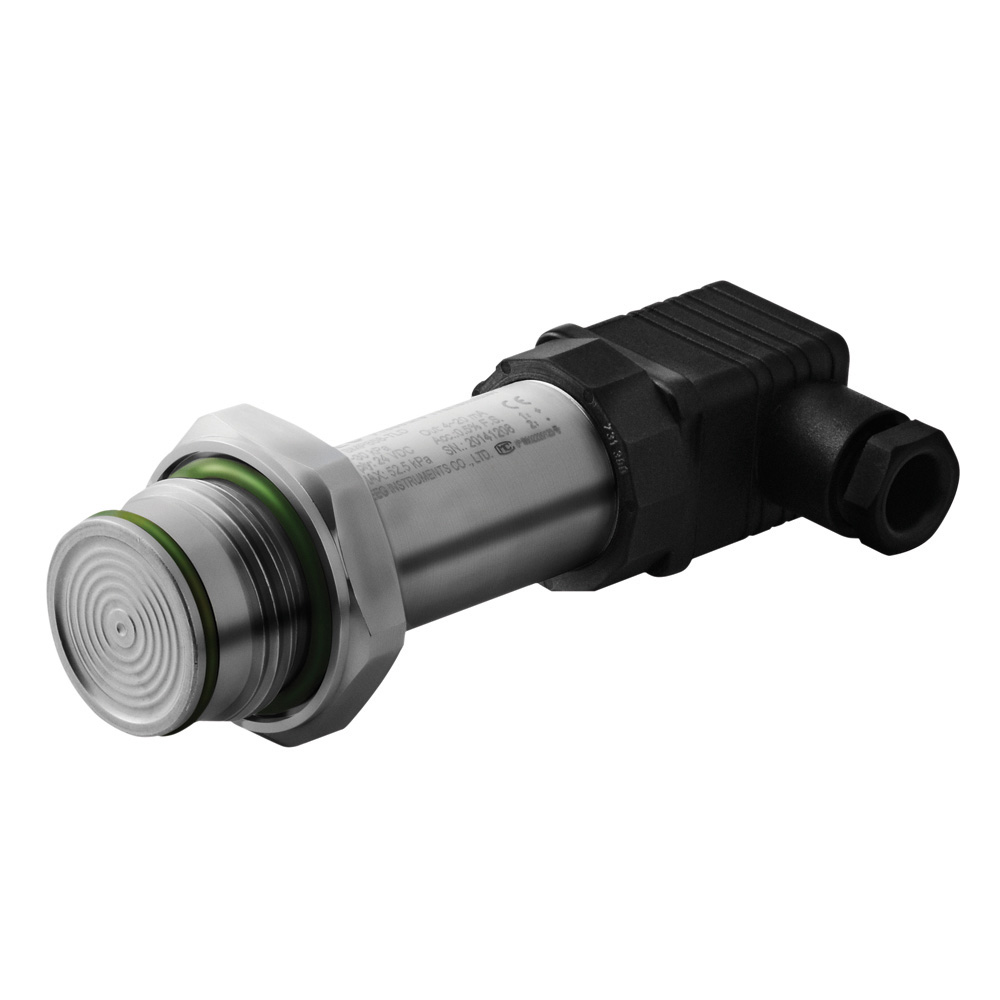

TP LEEG SMP858-TSD-S403GF-D1R0-A-65-6HTSZH13-/I1 (-20+20 KPA)

Advantage

• Originally patented fully-sealed, fully-isolated monosilicon pressure sensor.

• Optional various process connection.
• ASIC and SMT signal transmitting module. Friendly button parameters operation function, display measured data quickly.

• Multiple temperature and linearity compensation to improve accuracy.



Features

• Pressure type: gauge pressure

• Measuring range: 10kPa-3MPa
• Output signal: 4-20mA, 4-20mA+HART
• Reference accuracy: ±0.2% URL, ±0.5% URL
• Process connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 DN32, ISO2852, DRD ...
• Approvals: 3A, EHEDG, CE, RoHS, Ex-proof certificate



Industry application

• Pharmacy, Food, Milk, Beverage, Juice…
