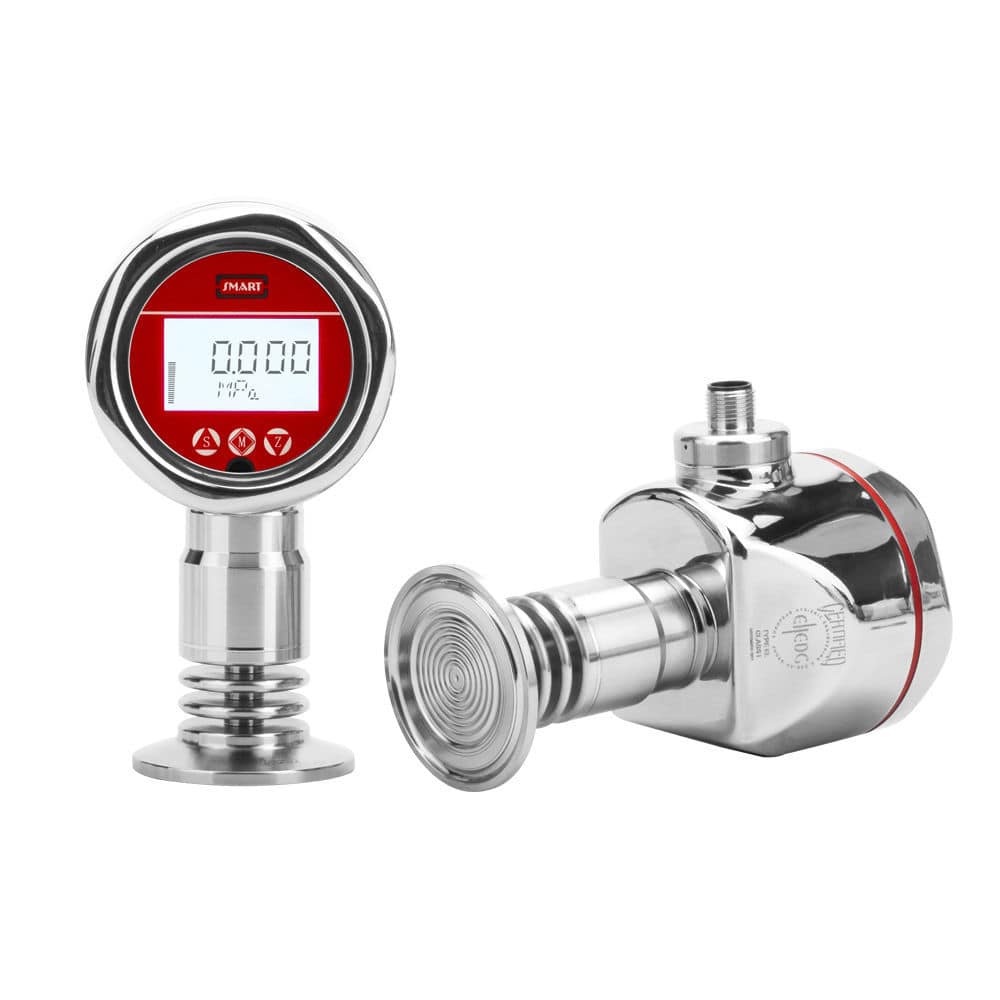

• Double diaphragm overload protection structure can easily cope with high overload tests.

• Designed for food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization.
• Isolated air cavity design to prevent condensation and avoid pollution to the media.
• ASIC and SMT signal transmitting module. Friendly button parameters operation function, display measured data quickly.
• Roughness of stainless steel surface Ra≤ 0. 4μ m, conform to international sterile standard.

• Filling fluid with hygiene standard in line with FDA certification.


• Pressure type: gauge pressure

• Measuring range: 10kPa-3.5MPa
• Output signal: 4-20mA, 4-20mA+HART
• Reference accuracy: ±0.2% URL, ±0.5% URL
• Process connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 DN32, ISO2852, DRD ...
• Approvals: 3A, EHEDG, CE, RoHS, Ex-proof certificate

Industry application

• Pharmacy, Food, Milk, Beverage, Juice…
