Transmisor de presión LEEG - Modelo: SMP131-TLD
Salida: 4-20 mA 2 cables - Alimentación: 24 vcc - Rango: -1+3 bar - Precisión: 0,5%
Conex. Proceso: 1/2"NPT

Features

• Measuring range: 10kPa-3.5MPa

• Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL，±0.2% URL, ±0.5% URL
• Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M)
• Measuring medium: Liquid, gas, or steam
• Media temperature: -30-80℃
• Tube Material: SUS304, SUS316
• Electrical connection: DIN43650, IP65; M12*1(4 pins), IP67



Industry application

• Process control system

• Machine building

Features

• Measuring range: 2.5kPa-4MPa

• Output signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.2% URL, ±0.5% URL, optional ±0.1% URL
• Process connection: M20*1.5(M), G1/2(M), G1-1/2(M), 1/4-18NPT(M)
• Measuring medium: aggressive liquid or gas
• Media temperature: -30-80℃
• Electrical connection: DIN43650, IP65; M12*1(4 pins), IP67



Industry application

• Process control system

• Machine building

Features

• Pressure types: gauge pressure

• Measuring range: 2kPa-40MPa
• Output signal: 4-20mA, 1-5VDC, Modbus- RTU/RS485,PNP or NPN output, customer
• Reference accuracy: 0.1% URL
• Stability: ±0.2% URL/ 5 years
• Media temperature: -40-120℃
• Process connection: Standard G1/4(M), G1/2(M), M20*1.5(M), optional
• Electrical connection: Aviation plug, M12*1 (5 pins)



Industry application

• Pressure & Level measurement

Transmisor de presión LEEG - Modelo: DMP305X-TLF - Rango: 0-400 bar - Señal de Salida: 4-20 mA - Con display - Precisión: 0,5%
+ Sello Homogenizador (SH-27) Conex. Instrumento: 1/4"NPTH, Presión: Hasta 600 bar, Materiales: Cuerpo: AISI 316 - Membrana: AISI 316L
+Fluido transmisor (carga de sistema)
+BLOQUE cerrado

Features

• Measuring range: 5kPa-100MPa

• Output signal: 4-20mA, 4-20mA+HART, customer
• RReference accuracy: ±0.2% URL, ±0.5% URL, optional ±0.1% URL
• Stability: ±0.1% URL/ year
• Diaphragm: SUS316L, Hastelloy C
• Media temperature: -40-120℃
• Protection class: IP67
• Process connection: M20*1.5 (M), G1/2 (M), G1/4 (M), 1/2 -14NPT(M), 1/4 -18NPT(M), etc
• Measuring medium: Liquid, gas or steam
• Approvals: CE, Ex-proof

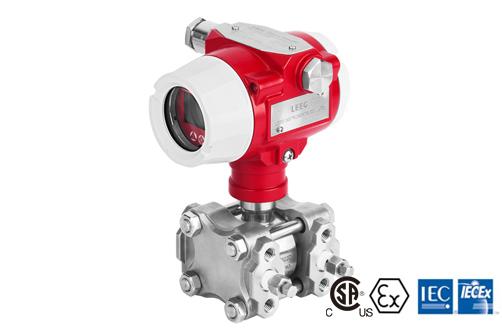

Transmisor de presión diferencial marca LEEG

Indicador local universal,
Marca: LEEG, Modelo: LDC11
Conexión DIN 42650, IP65
Señal de salida: 4-20 mA/ 2 PNP (on-off)
Tres pulsadores p/ajuste de todos los parámetros
30 unidades configurables

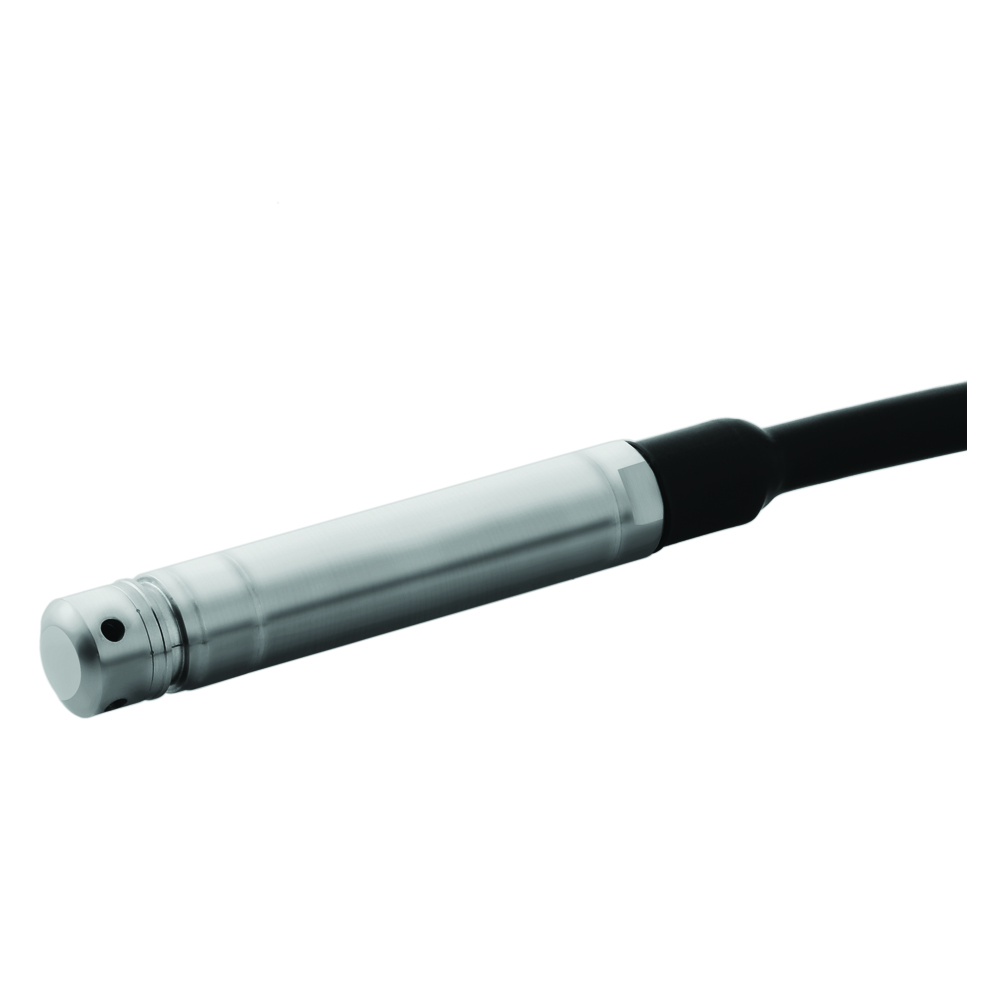

Advantage

• The sensor adopts the most advanced micro- processor technology with comprehensive linear error compensation and temperature error compensation to assure the highest precision of measuring result.

• The probe adopts full potting condensation- preventing technology, safe and reliable dual- seal design and fully welding technology with solid stainless steel body to assure long term stability and permanent air tightness.
• Signal transmitting module adopts transient voltage resistance protective circuits to assure operation regularly even under the harsh surge voltage environment.
• The seal of the cable adopts intensive cone plug sealing design to assure the long working life even under large mechanical load conditions during the installation and long-term use.



Features

• Measuring range: 0.5mH2O - 200mH2O

• Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL, ±0.5% URL
• Media temperature: -10~ 70℃
• Sensor type: Piezoresistive silicon pressure sensor
• Diaphragm: Stainless steel SUS316
• Sensor seal: O-ring(FKM), stainless steel welding



Industry application

• Depth or level measurement in wells and open waters

• Ground water level measurement

Termovaina clamp 1 1/2"
Material: AISI 304
Conex. Instrumento: 1/2"NPTH
Largo util: 50 mm

Marca CENI, Modelo: Serie TVR-10
*TVR-1R75* Mecanizada en una sola pieza, full AISI 316.
Largo acorde a sensor de 95 mm Útil.-
Conexión a instrumento: 1/2" NPT H
Conexión a Proceso: 3/4" NPT M

Marca: CENI
Modelo: Serie TVR-1C75
Conexión Instrumento: 1/2'' NPTH
Conexión a proceso: 3/4'' NPTT M
Material: total inox AISI 316
Mecanizada en una sola pieza
Largo útil de inserción: 60 mm

Marca: CENI
Modelo: Serie TVR-1R75, de catalogo JMH
Conexión Instrumento: 1/2'' NPTH
Conexión a proceso:
3/4'' BSP(M)
Material: total inox AISI 316
Mecanizada en una sola pieza, construcción
Cilíndrica - Largo útil de inserción: 450 mm
